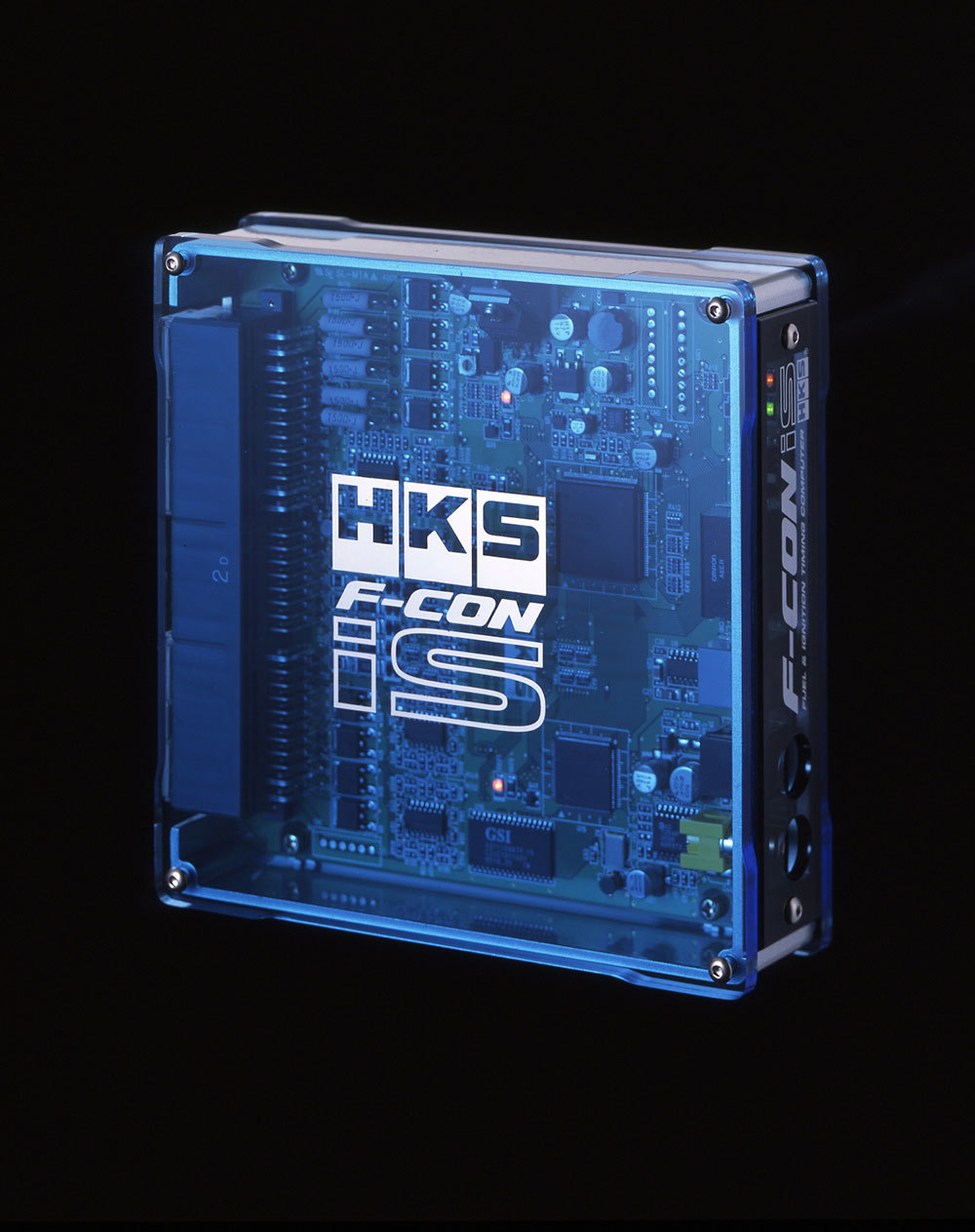

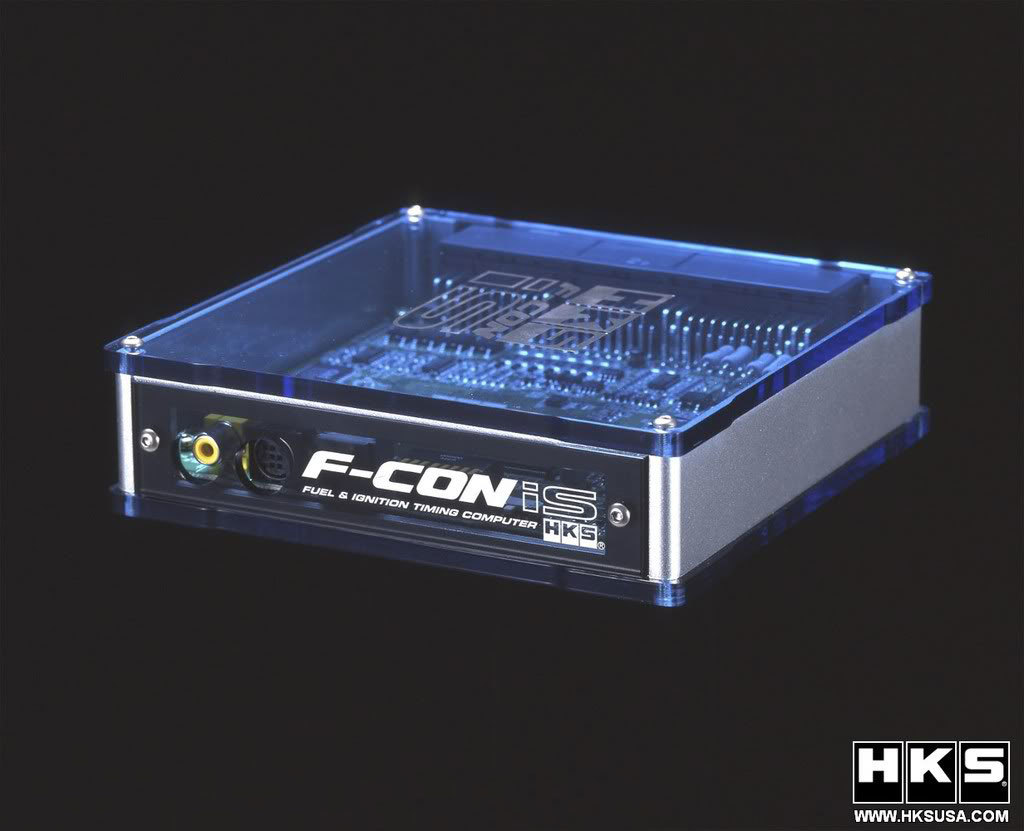

Оригинальный компьютер HKS F-CON iS 42011-AK003

Correction of Fuel Amount and Ignition Timing

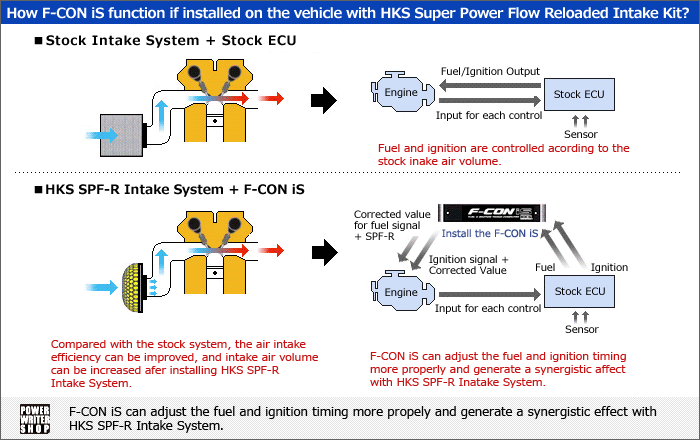

Fuel signal and Ignition Timing are controlled with trim maps inside F-CON iS. Four sub maps for each fuel and ignition control can be easily switched with dip switches.

SLD Function

Vehicle speed signal can be controlled to cancel speed limiter by stock ECU. * Not for Automatic Transmission and electro-magnet pick up type sensor.

FCD Function

Fuel Cut at high boost level can be cancelled with FCD function.

Engine Check Function

Even with F-CON iS, engine check function of stock ECU works. (Except some vehicles)

A/T Shift Up, Shift Down Ignition Compensation

A/T Shift Up, Shift Down Ignition Compensation To prevent knocking of vehicles with automatic transmission during shift up at high load or shift down for acceleration, engine rpm difference and throttle position is kept and ignition timing is retarded for a certain period.

Air Flow (Intake Air Volume sensor)

Conversion Function Air flow meter signal input can be converted with a 16x24 map with Air Flow Input value and RPM axis. When characteristics of air flow meter output are changed from stock condition, air flow meter signal can be corrected. (Get advice from PowerWriter shops.)

NVCS Control Function *

Solenoid of Nissan NVCS (Nissan Valve Control System) can be controlled with F-CON iS with RPM + Water Temperature condition.

Video Output Display Function (NTSC only)

Output signals from F-CON iS can be displayed on a monitor.

• Up to 18 items
• Each data can be shown by bar graph and numbers. With Screen changeover switch, items of the screen can be changed. (Items can be selected with PowerWriter.)

Basic Items:

Engine rpm, Vehicle Speed, Air Flow meter output voltage, Throttle Position, Water Temperature, Intake Air Temperature, Battery Voltage, Injector Duration, Pressure

DB Meter I/F Unit, A/F Knock Amp. or Communication Cable, any data can be shown on monitor

• I/F Unit + Sensors

Items : Boost (Vacuum) Pressure, Oil Temperature, Water Temperature, Oil Pressure, Fuel Pressure, Exhaust Gas Temperature

• A/F Knock Amp.

Items : A/F value, Knock Sensor level

• Communication Harness

Items : OBD Ignition Timing, A/F Correction Value, A/F Close-Loop Value

* One of I/F Unit or Communication Cable can be connected.

AIC Function

Up to 2 additional injectors can be controlled. Remarks: Injectors are required separately.

EIDS Function

When throttle is closed, intake air returns to air flow meter and it affects to air flow meter voltage. The voltage can be fixed to a certain voltage to prevent engine stall. Remarks: SQV is required separately.

Immobilizer Function

When ignition is turned on, if switch is not at setting value, engine will not start. Remarks: Mixture Controller is required separately.

OSC

It enables Fuel setting for Stock close-loop area. (Setting at PowerWriter shops is required.)
