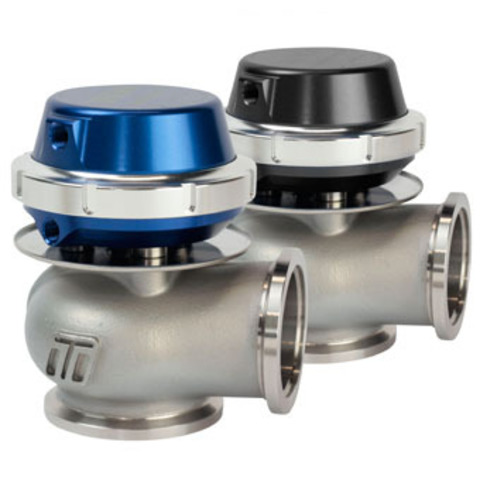

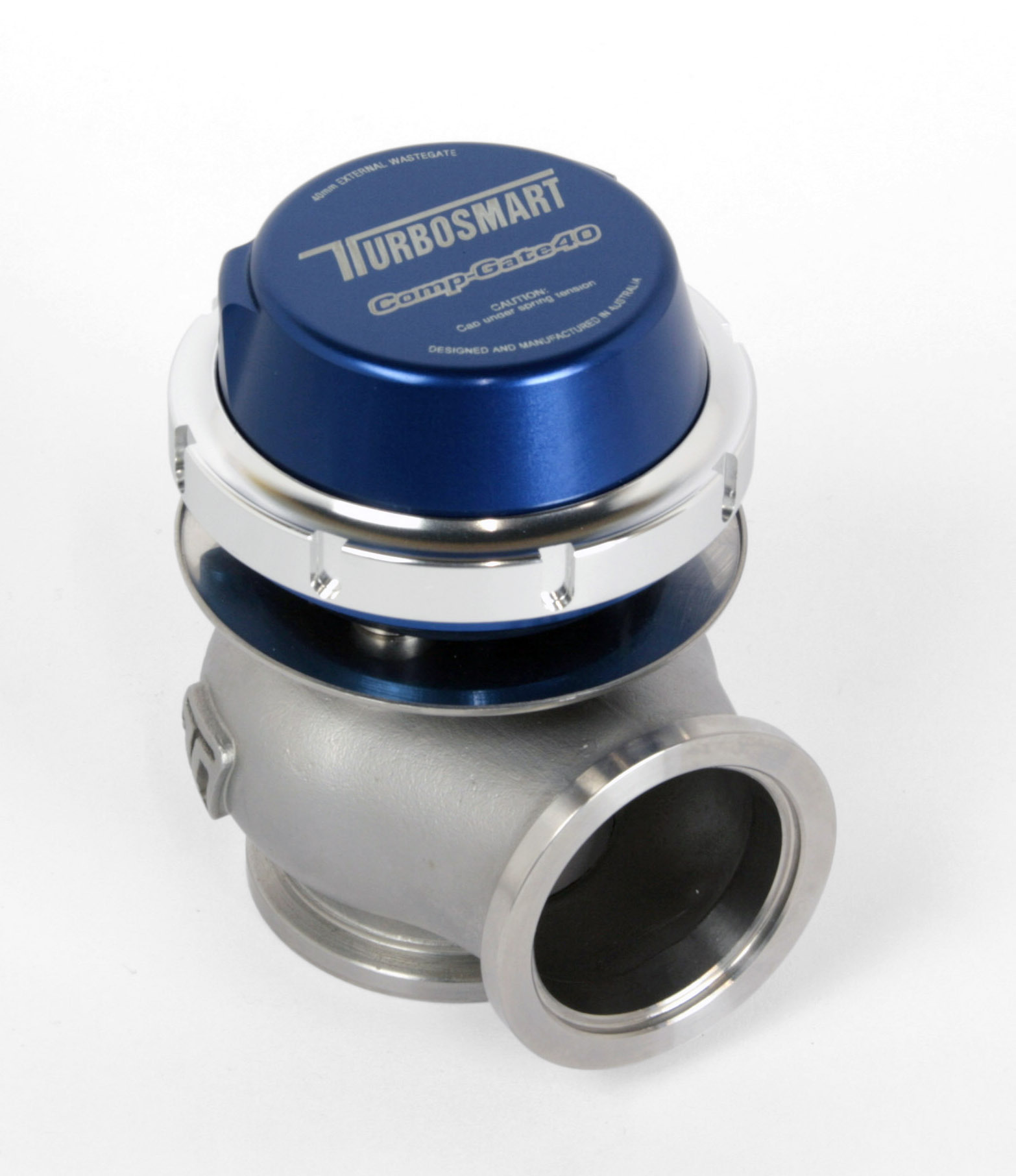

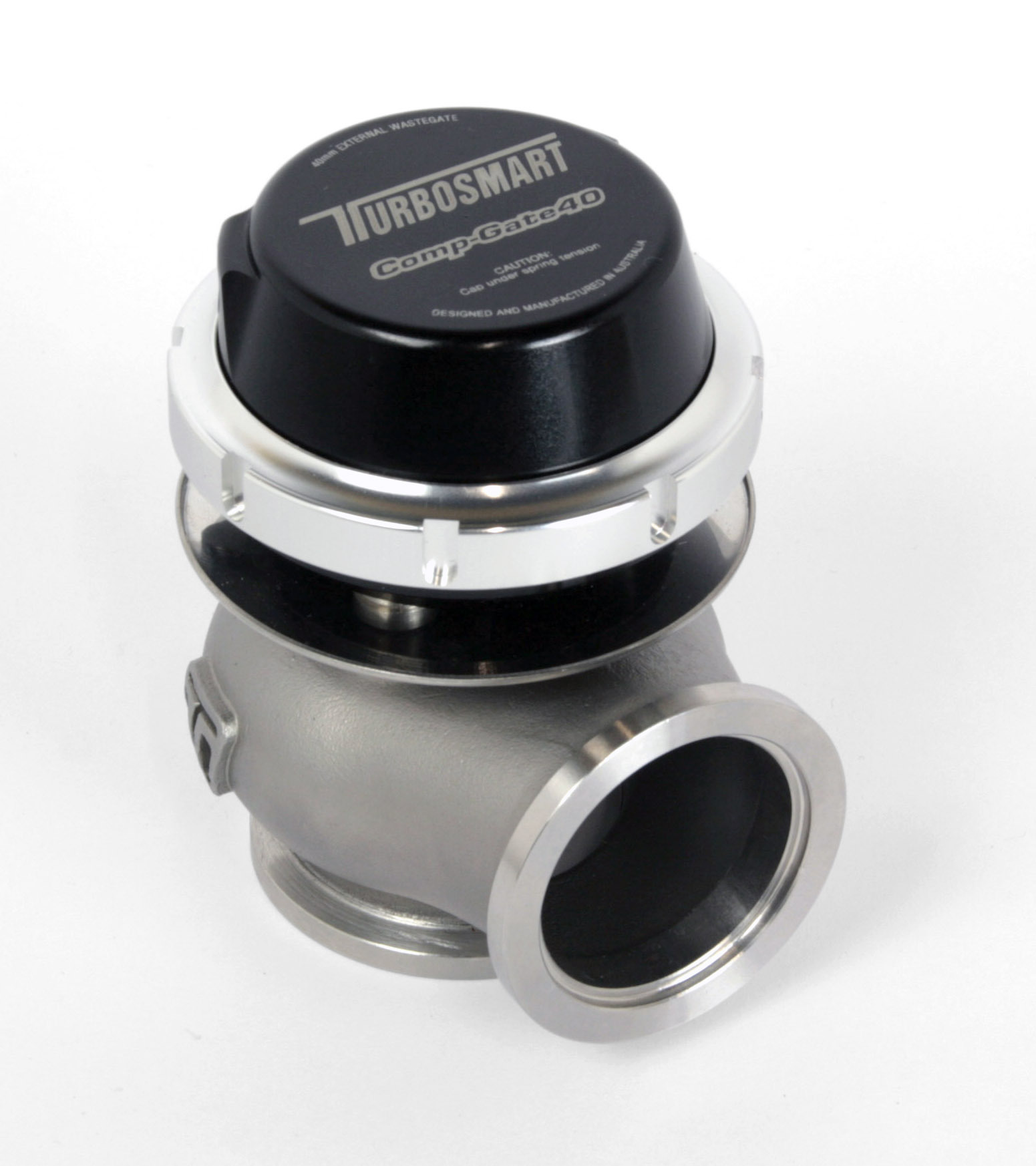

Turbosmart’s brand new 40mm external wastegate was designed to fit into tight engine bays while still offering superior flow and heat handling capabilities. The revolutionary new actuator housing is 25% smaller than our current range and allows for easy spring changes and gives the ability to index the cap orientation in 12 different positions.
Suitable for all turbocharged vehicles with an external wastegate turbo system. Street and racing applications. Flanges suit 1.75” outside diameter pipe.

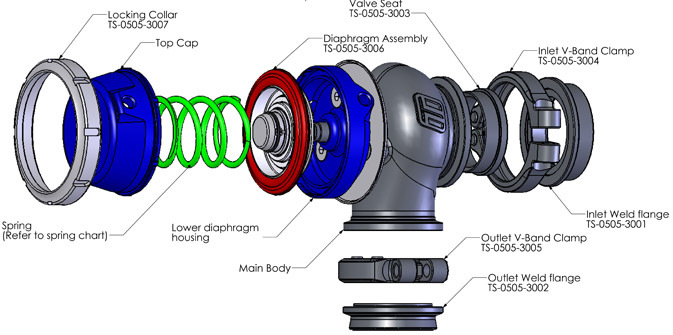

Inlet and outlet Weld Flanges, Inlet and outlet V-Band clamps, Valve seat, 2 x 1/16th blanking plugs, 2 x 1/16th Vacuum nipples, Locking Ring removal tool. Kit Builder Packs available to customer specifications.
